RX
Smart Reader

Where Compact Power Meets Payment Versatility

Next-Gen Payment Solutions

Quad-Core Processor

Dual Nano-SIM Slots

Touch Screen

2500mAh Battery

Credit cards, NFC, QR codes

Ultra-Portable

Key specs

Engineered for everyday business use, RX Series offers fast, clear receipts, robust performance, and hassle-free setup to help operations stay efficient and uninterrupted.

Future-Ready Android Platform

Running on Android 12 with a Quad-Core Cortex-A53 processor, the RX ensures smooth app performance, easy customization, and compatibility across payment ecosystems.

Ultra-Portable. Ultra-Precise.

Weighing just 186g, the RX combines minimalist industrial design with laser-engraved detailing and dual nano-SIM slots- slim enough to fit into a pocket, yet built to deliver enterprise-grade performance on the go.

Optimized for Engagement

Its unique 4-inch square display enhances clarity for QR code scanning, payment confirmations, and customer interactions. Compact in size, but big on visibility.

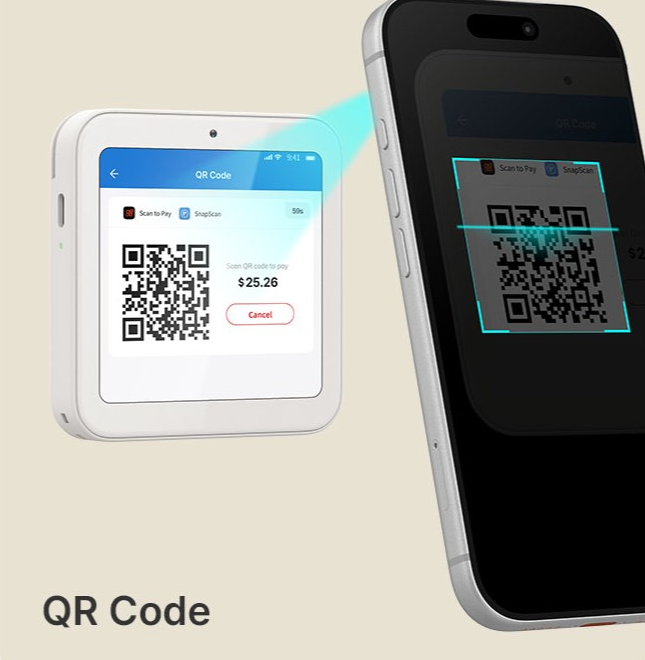

Omni-Channel Ready

Accept payments your way: Credit cards, contactless/NFC, QR codes, and digital wallets, all from a single, seamlessly integrated device.

Technical Specifications

Model name

R010

Operating System

Android 12

CPU

Quad-core 2.0GHz

Memory

2GB LPDDR4X + 32GB eMMC

Display

4 Inch, Resolution: 480*480, Touch Screen

Network

2G / 3G / 4G

Wi-Fi

Support 2.4G/5G, a/b/g/n

Bluetooth

Bluetooth 5.0, BLE

GPS

GPS / A-GPS

NFC

ISO/IEC 14443 Type A&B, Mifare

Camera

Front camera: 2 MP Focus

Audio

1 Speaker

Card Readers

MSR: ISO/IEC 7810/7811, Track 1/2/3, Bi-directional
IC Card: ISO/IEC, Conform to EMV L1/L2

Card Slot

1 PSAM Slot, ISO/IEC 7816
1 Nano SIM Slot

Battery

2500mAh, 3.85V

Peripheral Ports

USB-C, USB2.0, OTG

Weight

186g

Size (L×W×H)

93 × 89 × 17.6 mm

Adapter

Input: AC 100-240V, 50/60Hz
Output: 5V/1A

Accessories

5V/1A Adapter, USB Cable

Temperature

Storage: -35°C to 70°C
Operating: -10°C to 55°C
Humidity ≤95%

Certifications

EMV CT L1/L2, EMV CTLS L1, VISA, Mastercard, AMEX, Discover, PCI, TQM, FCC, CE, RoHS

Versatility Across Various Scenarios

Micro-merchant Kiosks

Vending Machines

Personal Services

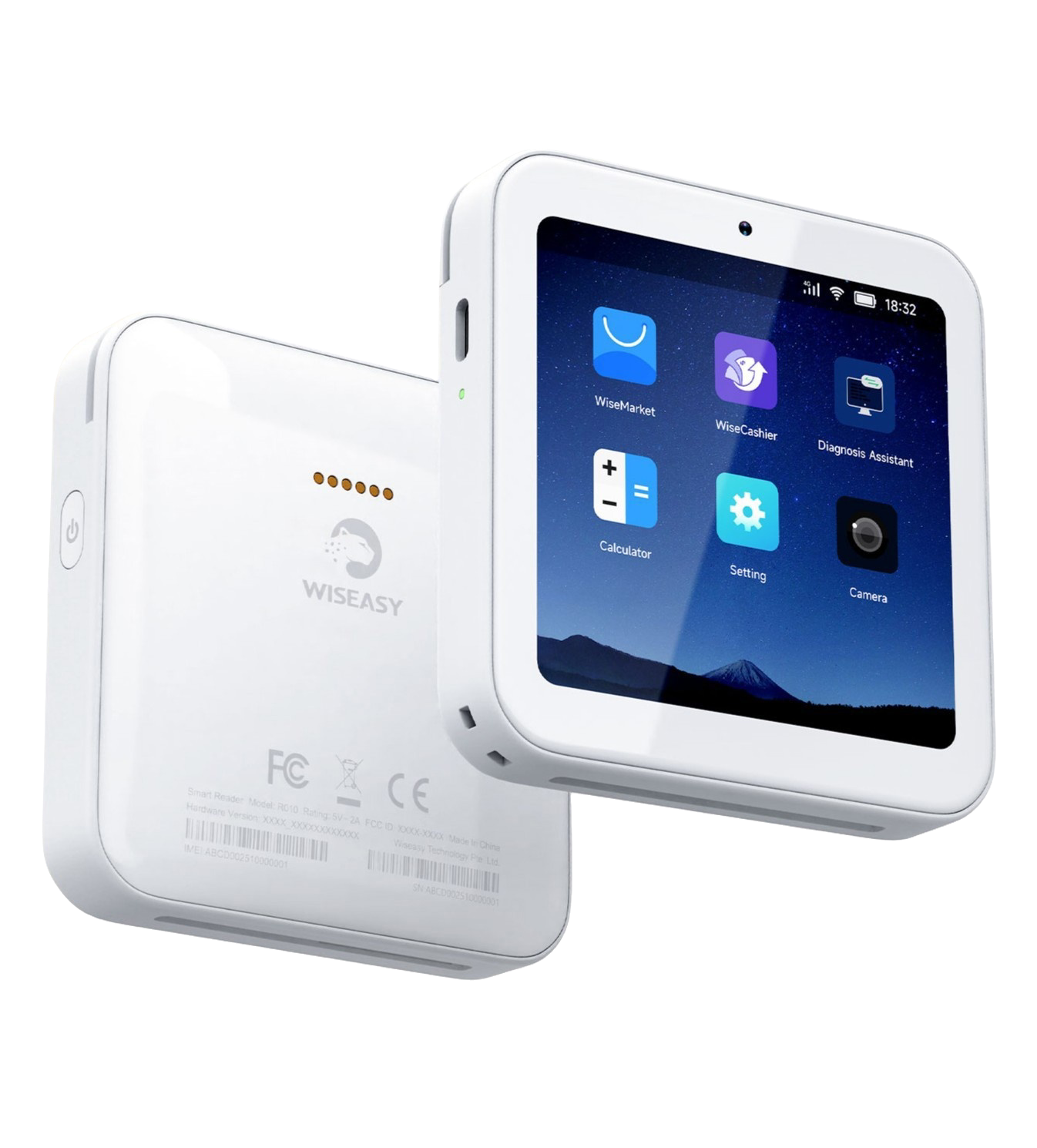

Modular by Design

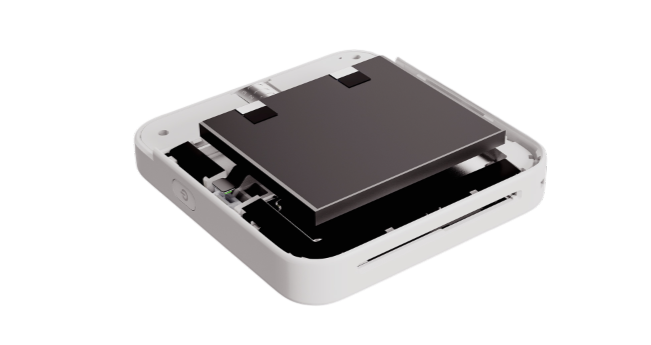

Built to Last Powered to Perform

With a 2500mAh lithium battery, the RX offers up to 16+ hours of active standby time and supports 600+ transactions per charge, perfect for all-day operations in the field.
