P5L SSK
Self-Service Payment Kit

All-in-one self-service payment kit for modern unattended experiences

Next-Gen Payment Solutions

Quad Cortex-A53

2GB LPDDR4 + 32GB eMMC

Tap on Glass

Android 11

Diverse Payment Options

Strong protection

Key specs

Purpose-built for faster, more controlled checkout moments, P5L SSK delivers reliable scanning and secure operation within a compact, counter-friendly design.

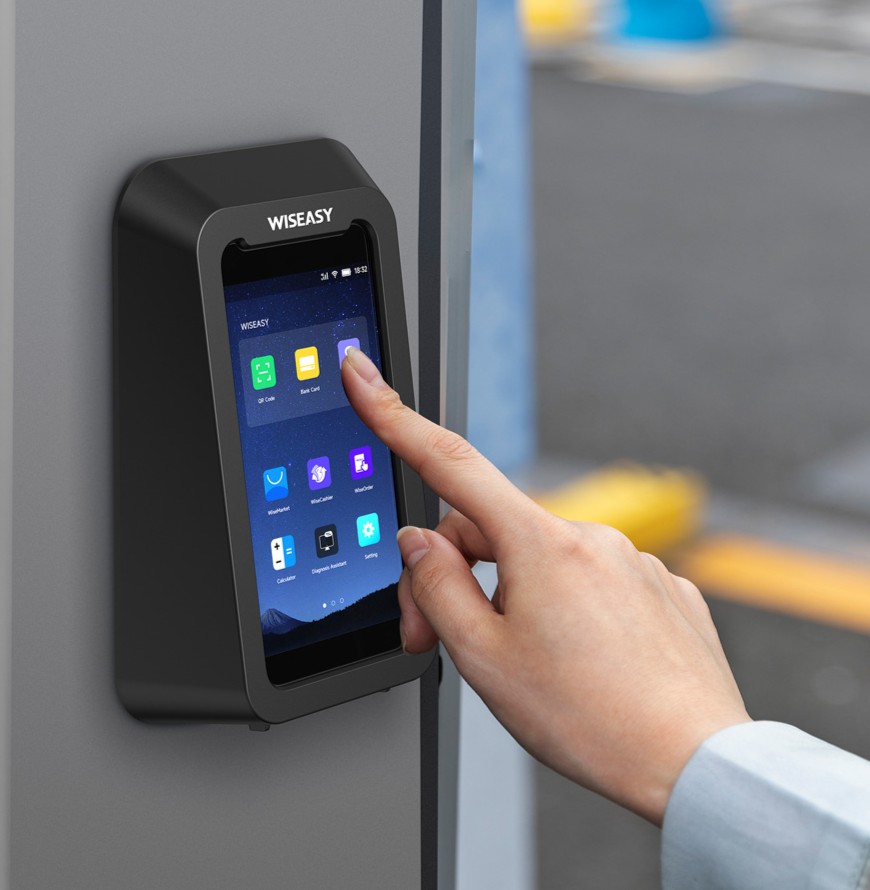

High performance, large memory

Equipped with a quad-core 4G processor, equipped with 2GB LPDDR4 + 32GB eMMC large memory, to bring you a smooth and efficient operating experience.

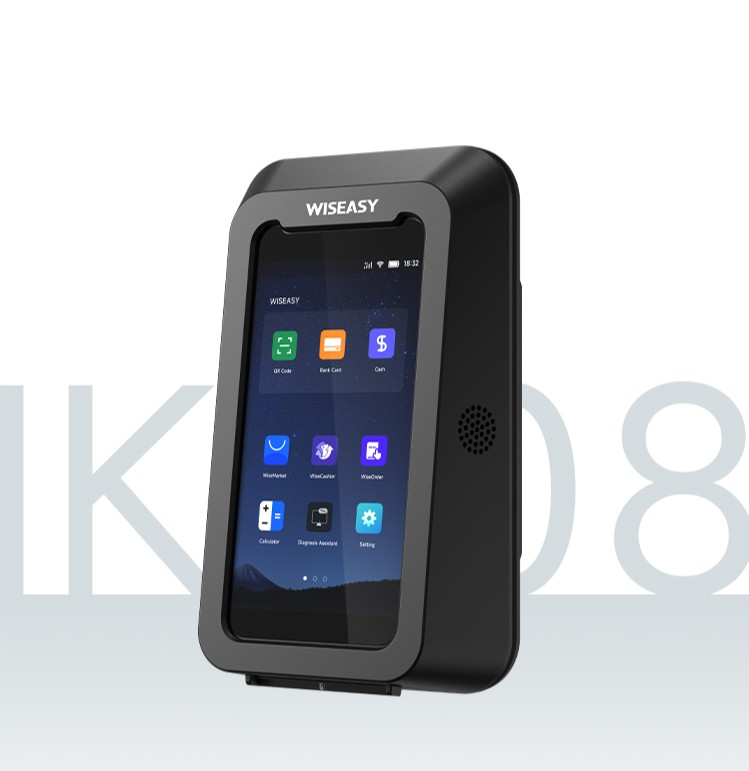

Comprehensive Testing for Great Reliability

Encompassing a sturdy shell and a 2.0mm thick screen protected by 'Corning' glass, the P5L SSK has passed the IK08 impact resistance test demonstrating its high durability.

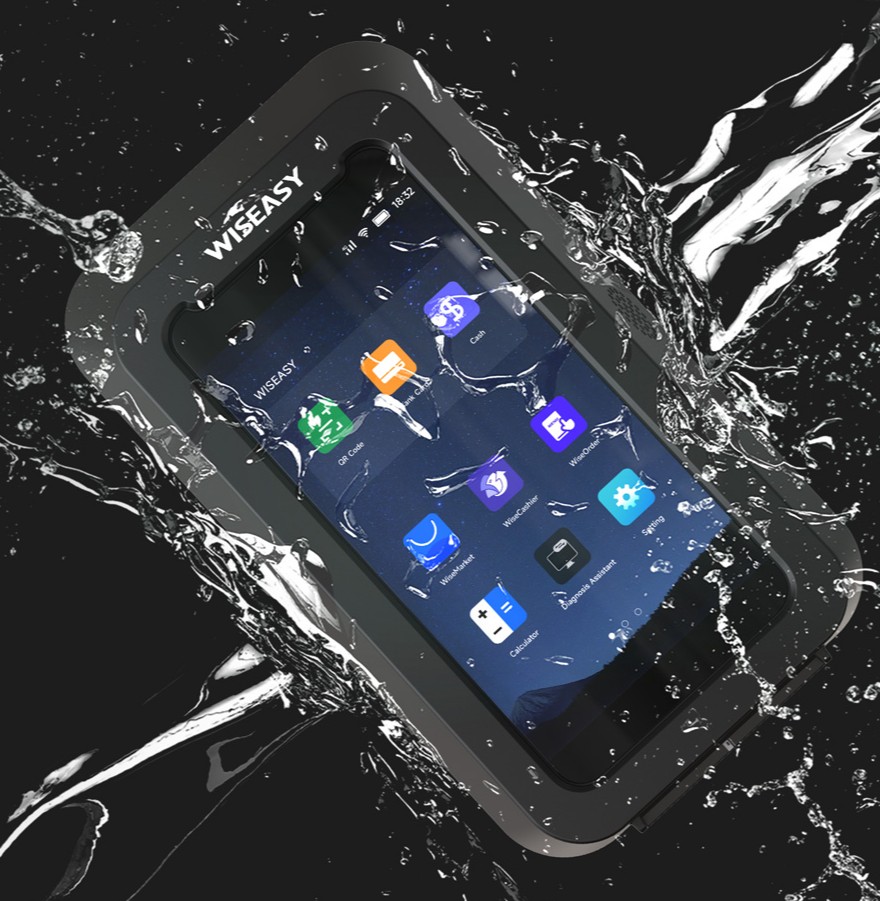

Experience ultimate durability and protection

The P5L SSK is designed to seamlessly integrate into diverse Self-Service payment scenarios. Its advanced IP64-level protection, ensures it remains resistant to water and dust.

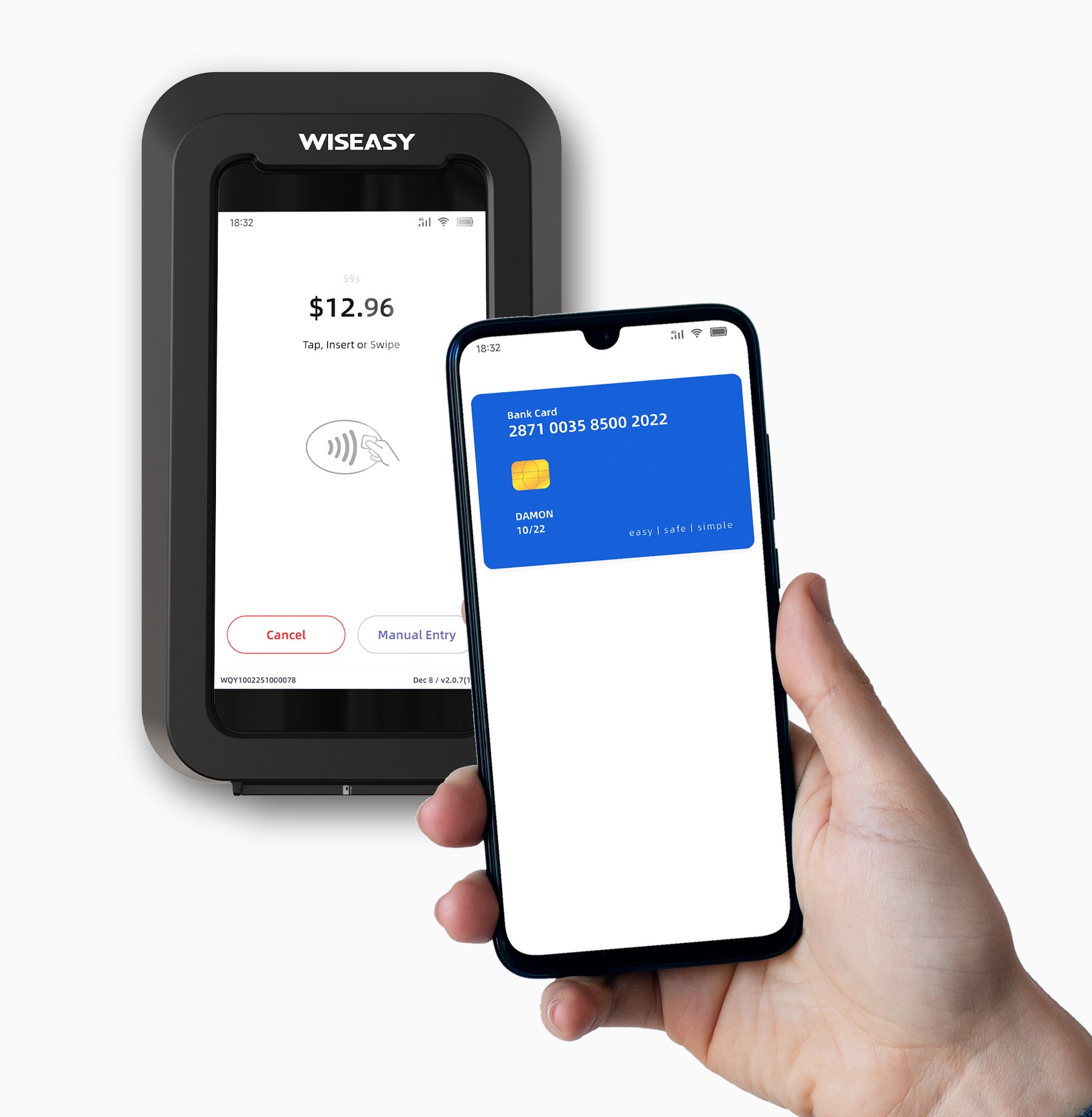

Faster, frictionless checkouts with NFC

It's 5.5-inch high-definition full screen with a resolution up to 1280x720, offers users an enhanced visual experience, while supporting NFC payment for faster, frictionless checkouts.

Technical Specifications

Model name

P5L-SSK

Operating System

Android 11

Processor

Quad Cortex-A53, 2.0GHz

Memory

2GB LPDDR4 + 32GB eMMC

Security Processor

Max 32555

Display

5.5" 720×1280 IPS capacitive multi-touch

Network

2G / 3G / 4G

Wi-Fi

2.4G/5G, IEEE 802.11 a/b/g/n/ac

Bluetooth

Bluetooth 5.0, BLE

GPS

GPS / A-GPS / Glonass / Beidou

Camera

Front Camera: 2M FF

Audio

Speaker: 1W, Mic (optional)

NFC

13.56MHz, ISO/IEC14443 A/B, Mifare S50/S70, Felica

Card Readers

IC Card: ISO7816

Card Slot

2× Micro SIM + 1× PSAM

Peripheral Ports

MDB, 2× RS232, Ethernet, USB-A, USB-C, DC Jack

Weight

584.5g

Size (L×W×H)

190 × 112 × 83.1 mm

Adapter

AC 100-240V → 9V/2A

Environment

Operating: −10°C to 55°C
Storage: −20°C to 60°C

Certifications

EMV, PCI PTS 6.1, VISA, Mastercard, AMEX, Discover, UPI, JCB, CE

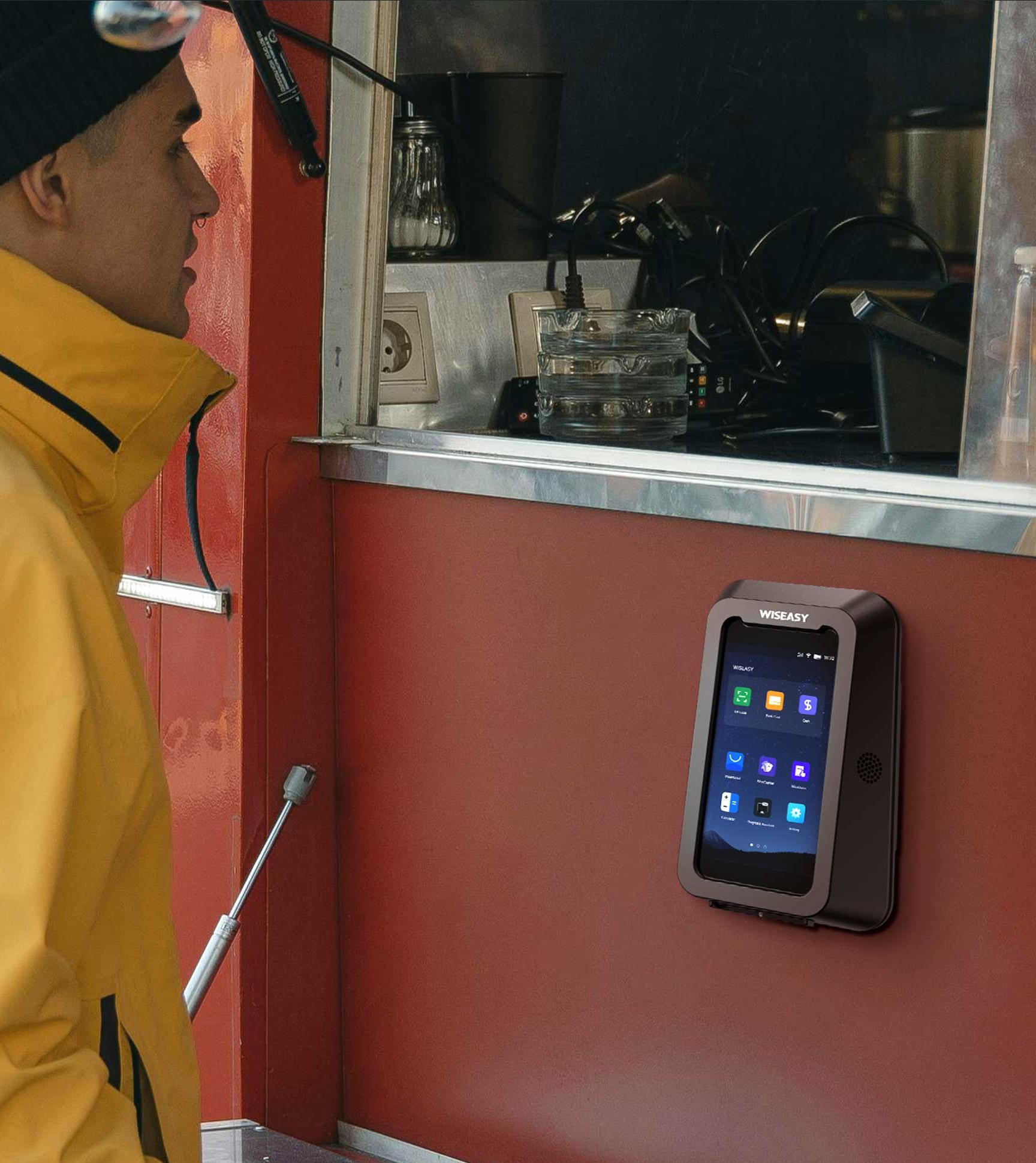

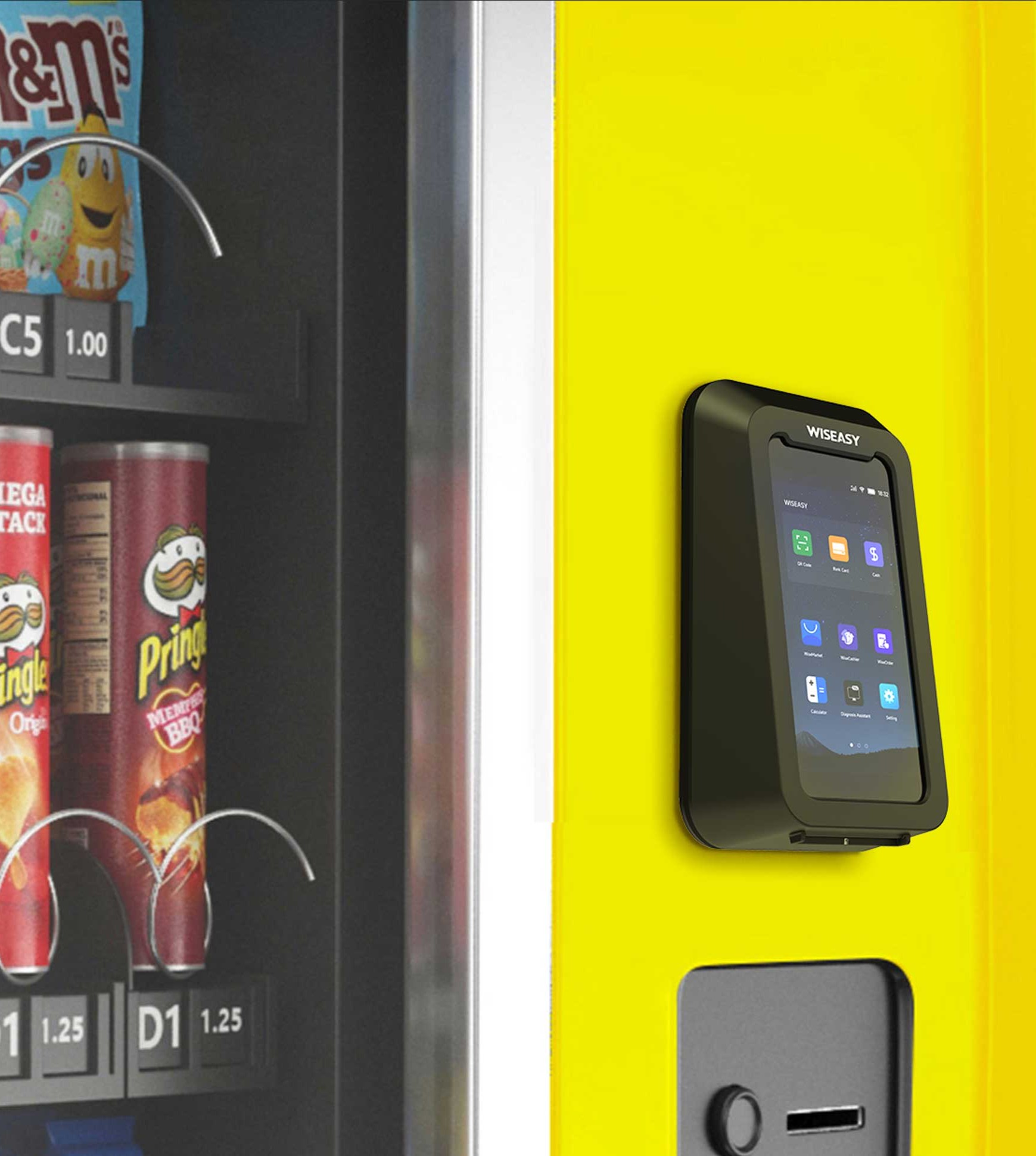

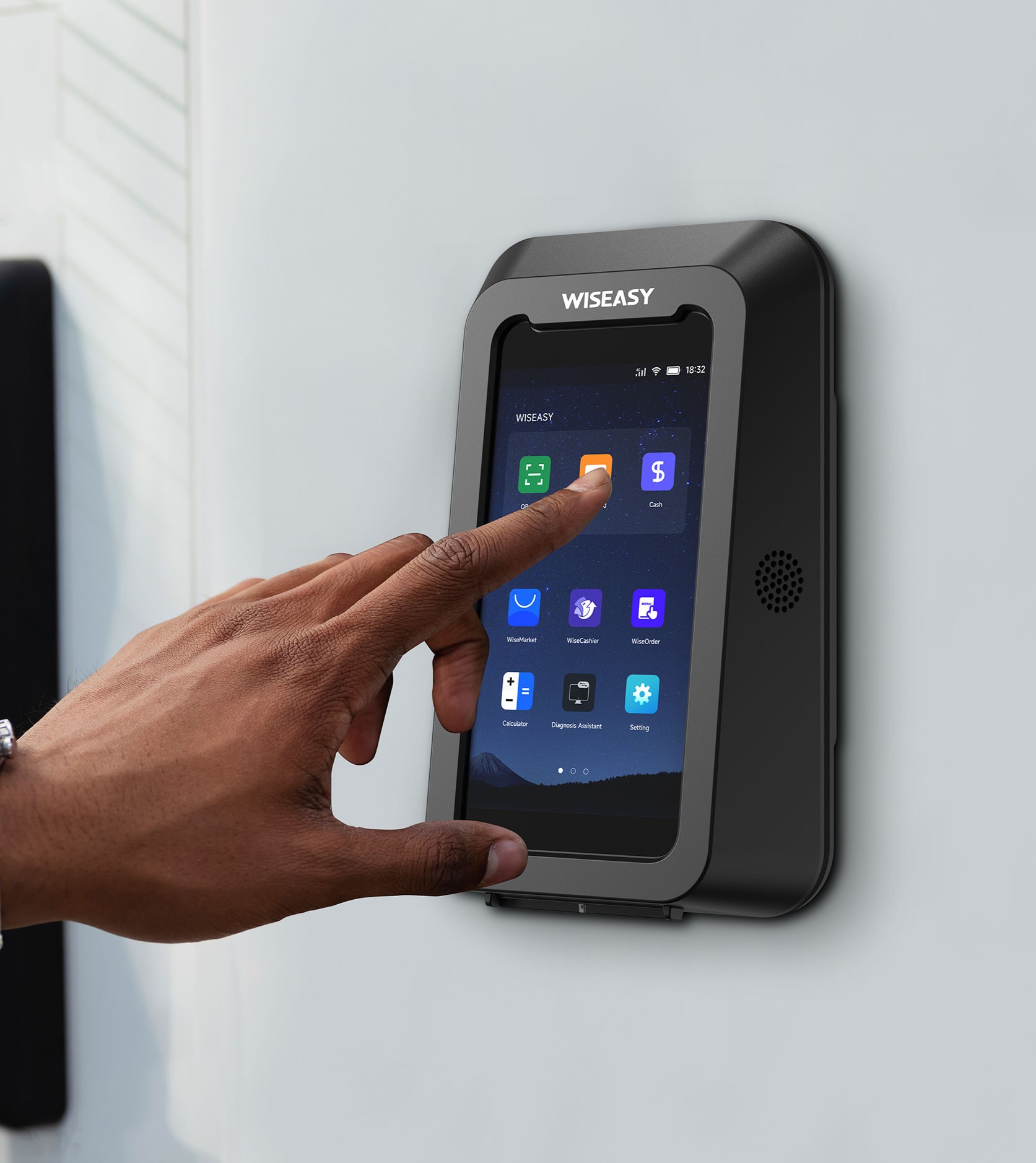

Applicable to a Variety of Scenarios

Whether you're streamlining your point-of-sale system, enhancing your operational infrastructure, or simply expanding your connectivity, the P5LSSK adapts to your business, allowing for smoother, more efficient operations.

Related Products

Download the Spec Sheet

Get full technical specifications, certifications, dimensions, and performance details in a downloadable PDF.

Download Now

P5L SSK Self-Service Payment Kit
