P5L PIN Pad
Smart Retail PIN Pad

Smarter, Sharper, Faster Payments. Meet the P5L PIN Pad

Next-Gen Payment Solutions

Quad-Core Processor

Android 11

5.5-inch HD Full-screen

2GB LPDDR4 + 32GB eMMC

Diverse Payment Options

Tap on Glass

Key specs

Built to inspire confidence at checkout, P5L PIN Pad delivers secure PIN entry, clear on-screen guidance, and reliable performance for smooth customer-led payments.

Future-Ready Performance

Powered by a robust Android-based OS, the P5L PIN Pad’s quad-core 2.0GHz processor with 2GB RAM and 32GB storage ensures smooth, reliable performance — even during peak hours.

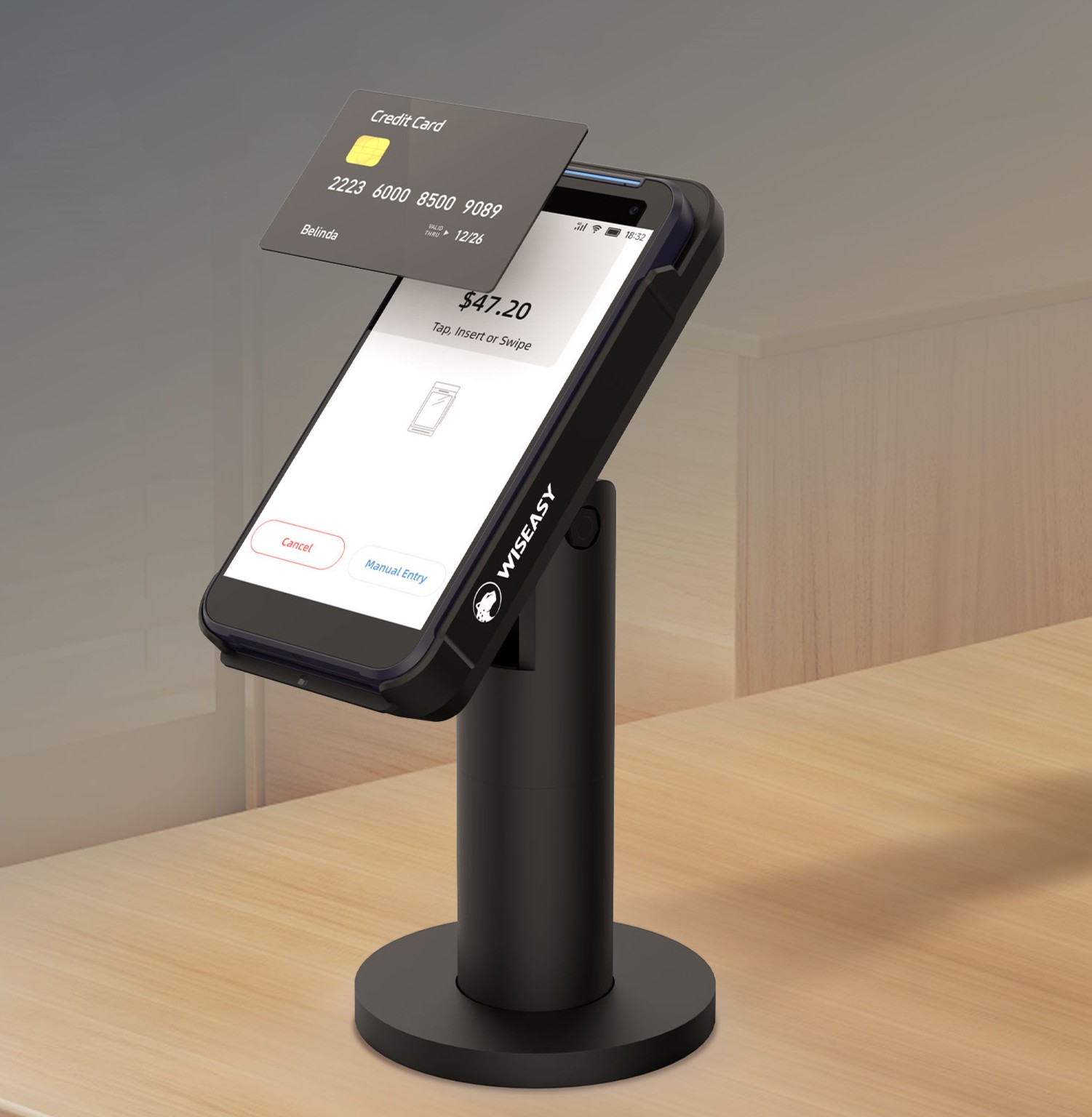

On-Screen NFC for Seamless Contactless Payments

Revolutionize the customer experience with on-screen NFC. Allow customers to tap directly on the display for faster, frictionless payments — all while keeping your brand and content front and center.

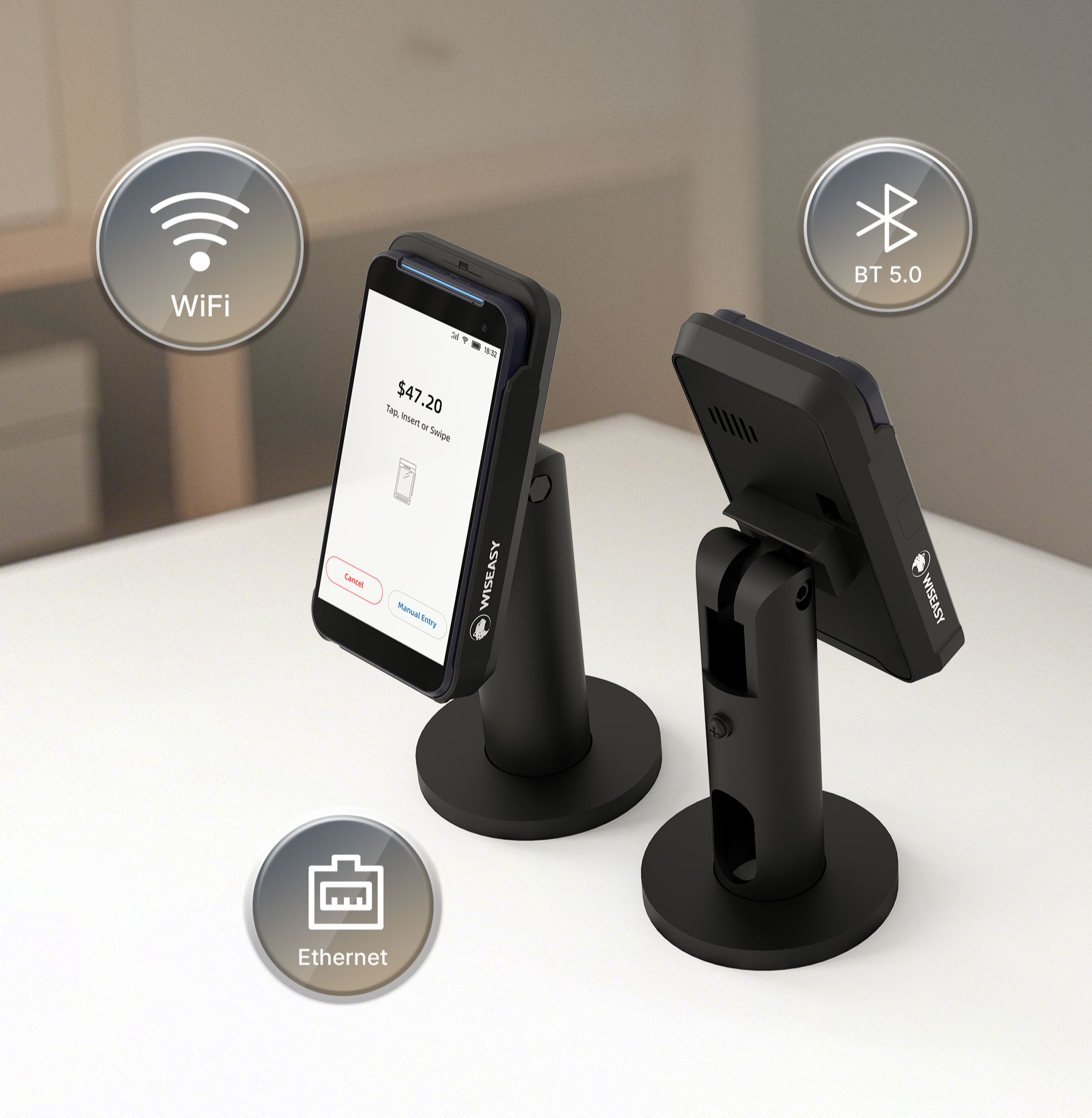

Always-On Connectivity

Deploy with flexibility and confidence. Whether it's via dual-band Wi-Fi, Bluetooth 5.0, or Ethernet, the P5L PIN Pad ensures secure, always-on communication in any retail environment.

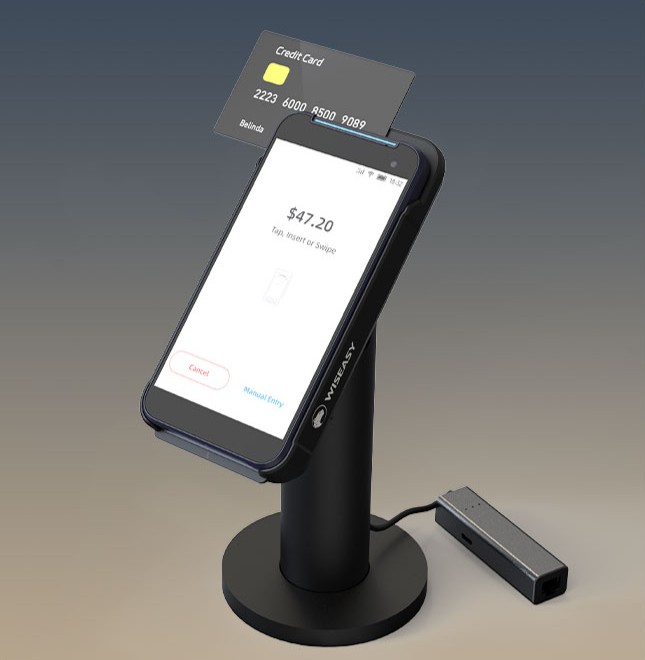

Universal Payment Acceptance

Serve every customer with confidence. The P5L PIN Pad supports all major payment methods — Magnetic Stripe, EMV Chip & PIN, Contactless NFC, and QR code payments — in one sleek, unified device.

Technical Specifications

Model name

P5L-PINPad

Operating System

Android 11

CPU

Quad Cortex-A53, 2.0GHz

Memory

2GB LPDDR4 + 32GB eMMC

Security Processor

Max 32555

Display

5.5 inch IPS Screen, 1280×720 HD
Capacitive Multi-Point Touch

Wi-Fi

2.4G/5G, IEEE 802.11 a/b/g/n/ac

Bluetooth

Bluetooth 5.0, BLE

Camera

Front Camera: 2M FF

Audio

Speaker: 1W

NFC

13.56MHz, ISO/IEC14443 Type A&B, Mifare S50/S70, Felica

Card Readers

MSR: ISO7810-7813 (3 tracks)
IC Card: ISO7816

Hub Peripheral Ports

1× USB-C (Power Input)
1× RJ45 (Ethernet)

Environment

Operating: −10°C to 55°C
Storage: −20°C to 60°C

Certifications

EMV CT L1/L2, EMV CTLS L1, VISA, Mastercard, AMEX, Discover, UPI, JCB, MCCS, Rupay, NSICCS, PCI PTS 6.1, TQM, CE, FCC

Business Scenarios

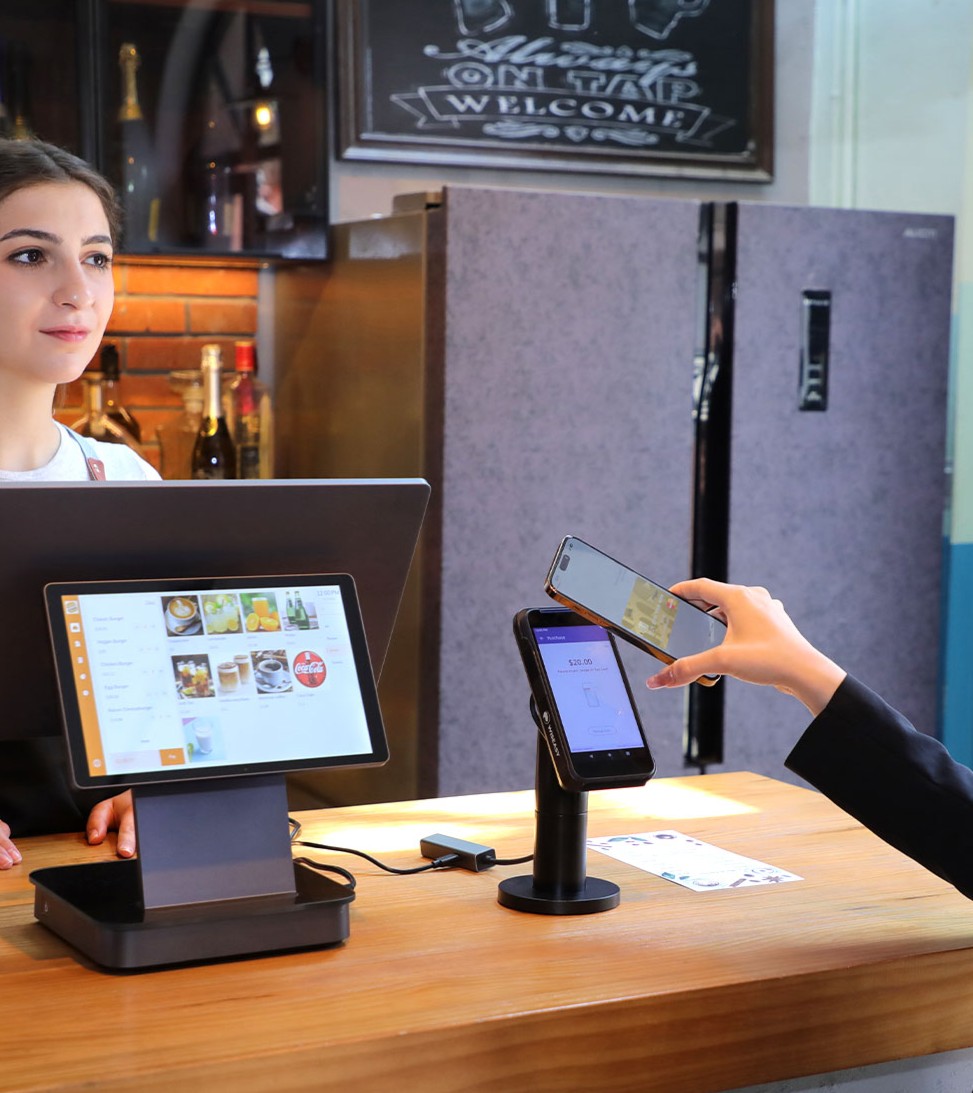

Smooth Payments at the POS

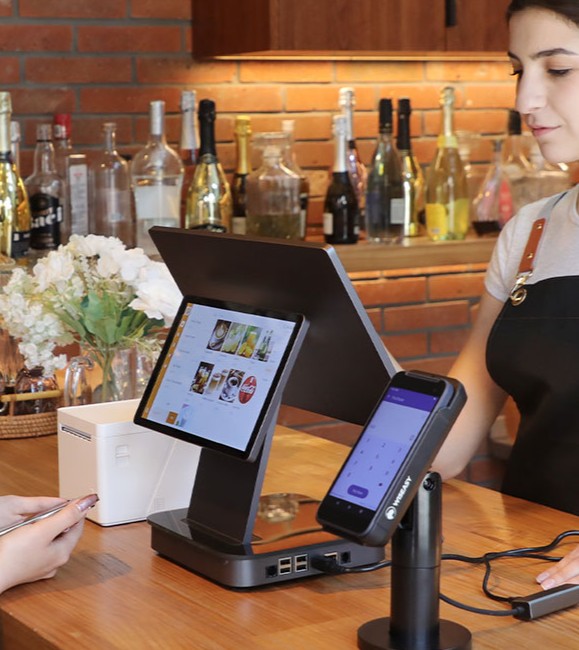

Clear Displays for Faster Decisions

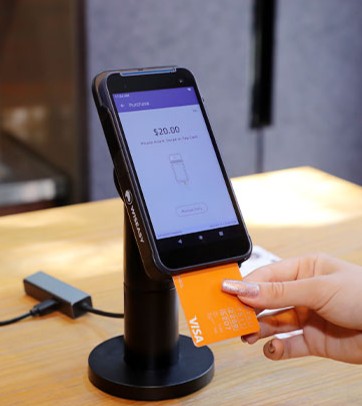

Secure Card Payments

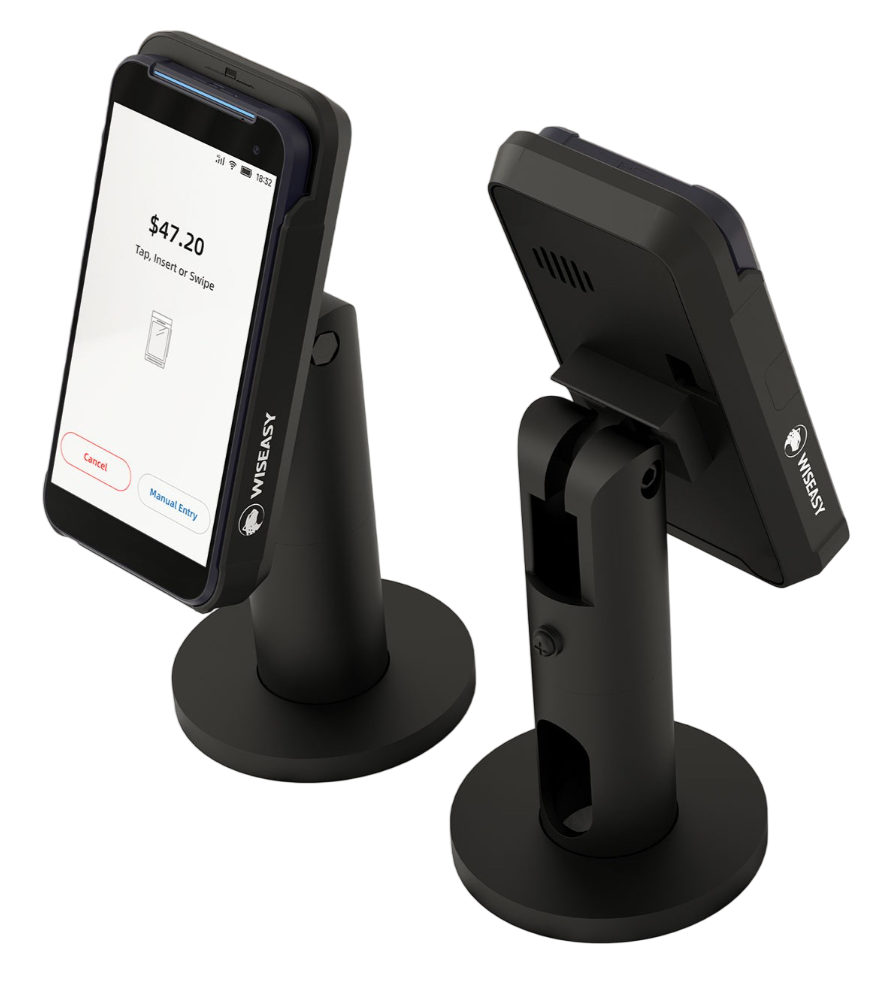

Immersive 5.5” Full-Color Display

Effortless Desktop POS Integration

Designed for smooth integration into existing Desktop POS setups, the P5L PIN Pad delivers a streamlined, cashless payment journey — enhancing operational efficiency while keeping queues moving.
